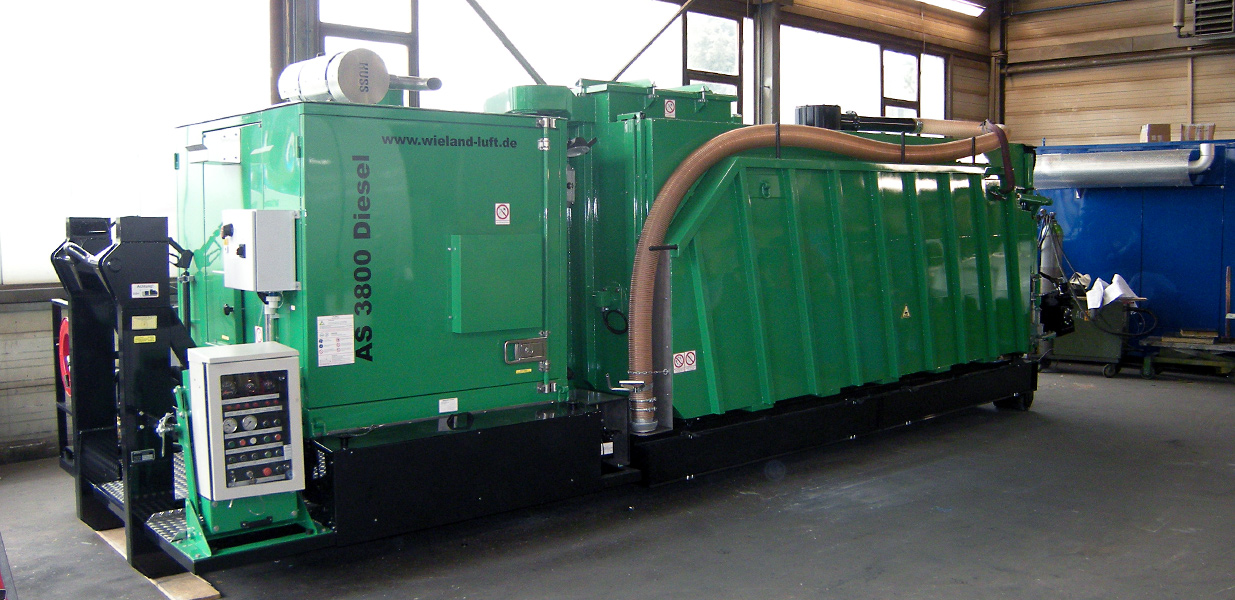

AS 3800, mobile vacuum and disposal system for ash and residues from bio-mass units.

Driving power: 96 kW Diesel engine
Maximum air flow: 3800 m³/h
Maximum suction power: 500 mbar
Collection volume: 14 m³ approx.

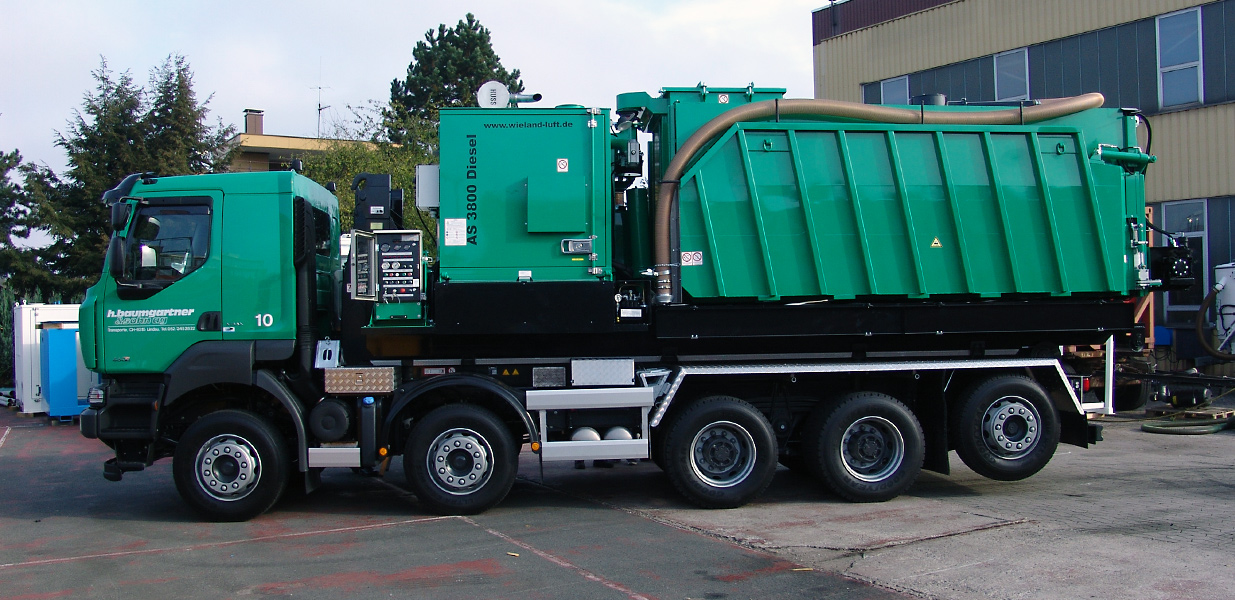

To be mounted on trucks or hook-lifter frames.

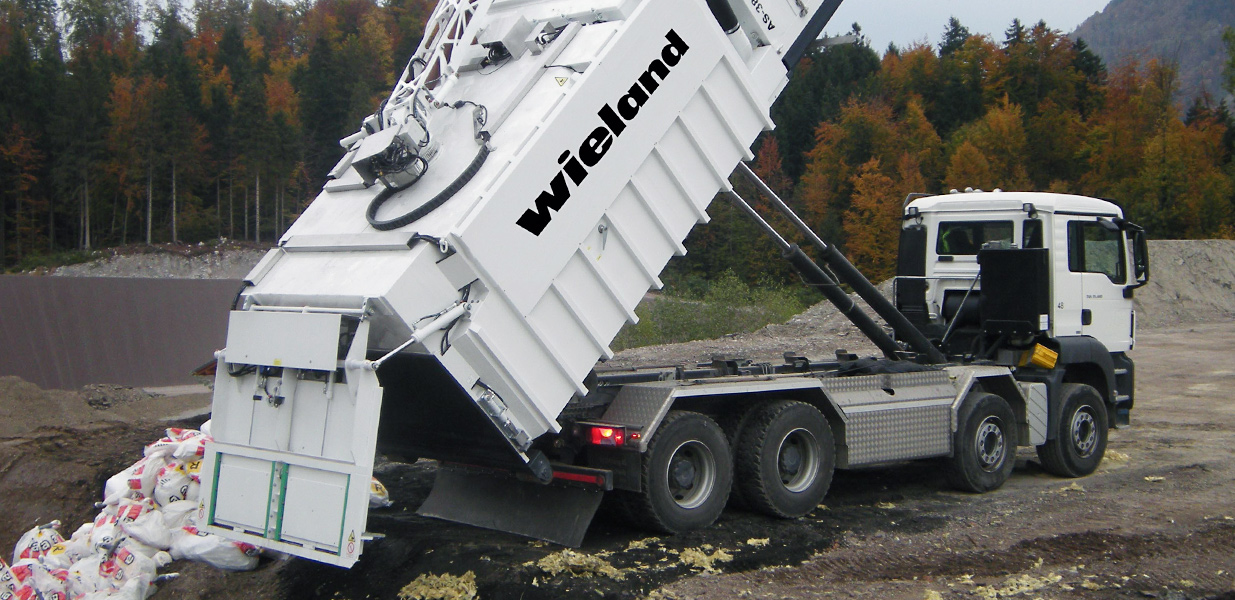

Vacuum unit to extract dry bulk material. Designed for dangerous suction material of dust class M (ash). The Ash can be discharged into open skips. Alternatively the ash can be humidified and discharge downwards onto the ground. The high suction power allows for a suction rate of up to 24 t/h. Flexible hoses of a total length or approx. 20 m can be transported laterally on the unit.
